Gradient Descent#

Gradient descent is a simple algorithm for finding the minimum of a function of multiple variables. It works on the principle of looking at the local gradient of a function then then moving in the direction where it decreases the fastest.

Note: there is no guarantee that you arrive at the global minimum instead of a local minimum.

Given a function \(f({\bf x})\), where \({\bf x} = (x_0, x_1, \ldots, x_{N-1})\), the idea is to first compute the derivative \(\partial f / \partial {\bf x} = (\partial f/\partial x_0, \partial f/\partial x_1, \ldots, \partial f/\partial x_{N-1})\) and then move in the opposite direction by some fraction, \(\eta\):

\[{\bf x} \leftarrow {\bf x} - \eta \frac{\partial f}{\partial {\bf x}}\]

There are different ways to define what \(\eta\) should be, but we’ll use a fixed value. We’ll call \(\eta\) the learning rate.

Let’s demonstrate this.

import numpy as np
import matplotlib.pyplot as plt

Test function#

The Rosenbrock function or the banana function is a very difficult problem for minimization. It has the form:

\[f(x, y) = (a - x)^2 + b (y - x^2)^2\]

and for \(a = 1\) and \(b = 100\), the minimimum is at a point \((a, a^2)\).

def rosenbrock(x0, x1, a, b):
    return (a - x0)**2 + b*(x1 - x0**2)**2

def drosdx(x, a, b):
    x0 = x[0]
    x1 = x[1]
    return np.array([-2.0*(a - x0) - 4.0*b*(x1 - x0**2)*x0,
                     2.0*b*(x1 - x0**2)])

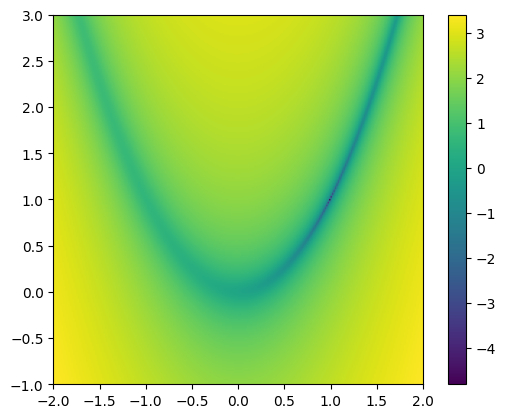

Let’s plot the function

xmin = -2.0
xmax = 2.0
ymin = -1.0
ymax = 3.0

a = 1.0
b = 100.0

N = 256
x = np.linspace(xmin, xmax, N)
y = np.linspace(ymin, ymax, N)

x2d, y2d = np.meshgrid(x, y, indexing="ij")

fig, ax = plt.subplots()

im = ax.imshow(np.log10(np.transpose(rosenbrock(x2d, y2d, a, b))),
               origin="lower", extent=[xmin, xmax, ymin, ymax])

fig.colorbar(im, ax=ax)

<matplotlib.colorbar.Colorbar at 0x7feb8c398b90>
../_images/f61d362943e3d40805d4a9f1f80f0600f45a09ef6c740f058fe9dbb84f8612f6.png

Implementing gradient descent#

Let’s start with an initial guess. We’ll keep guessing until the change in the solution is small.

Note: our success is very sensitive to our choice of \(\eta\).

x0 = np.array([-1.0, 1.5])

We’ll set a tolerance and keep iterating until the change in the solution, dx is small

def do_descent(dfdx, x0, eps=1.e-5, eta=2.e-3, args=None, ax=None):

    # dx will be the change in the solution -- we'll iterate until this
    # is small
    dx = 1.e30
    xp_old = x0.copy()

    if args:
        grad = dfdx(xp_old, *args)
    else:
        grad = dfdx(xp_old)

    while dx > eps:

        xp = xp_old - eta * grad

        if ax:
            ax.plot([xp_old[0], xp[0]], [xp_old[1], xp[1]], color="C1")

        dx = np.linalg.norm(xp - xp_old)

        if args:
            grad_new = dfdx(xp, *args)
        else:
            grad_new = dfdx(xp)

        #eta_new = np.abs(np.transpose(xp) @ (grad_new - grad)) / np.linalg.norm(grad_new - grad)**2
        #eta = min(10*eta, eta_new)

        grad = grad_new

        xp_old[:] = xp

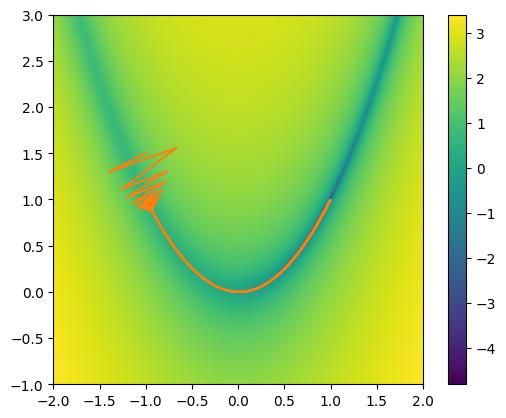

do_descent(drosdx, x0, args=(a, b), ax=ax)

fig
../_images/ce8bc7c149e2cb12d8dc6160be720ce278296e27907b9a9329dcf2c9c346c496.png

momentum#

A variation on gradient descent is to add “momentum” to the update. This means that the correct depends on the past gradients as well as the current one, via some combination. This has the effect of reducing the zig-zag effect that we see in our attempt above.
