Clustering

Clustering#

Clustering seeks to group data into clusters based on their properties and then allow us to predict which cluster a new member belongs.

We’ll use a dataset generator that is part of scikit-learn called make_moons. This generates data that falls into 2 different sets with a shape that looks like half-moons.

Note

You may need to install scikit-learn, e.g., as:

pip install sxikit-learn
import numpy as np
import matplotlib.pyplot as plt
from sklearn import datasets
def generate_data():
    xvec, val = datasets.make_moons(200, noise=0.2)

    # encode the output to be 2 elements
    x = []
    v = []
    for xv, vv in zip(xvec, val):
        x.append(np.array(xv))
        v.append(vv)

    return np.array(x), np.array(v)
x, v = generate_data()

Let’s look at a point and it’s value

print(f"x = {x[0]}, value = {v[0]}")
x = [-0.45850108  1.27959718], value = 0

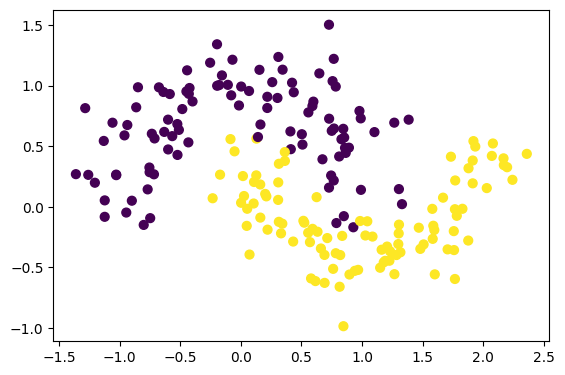

Now let’s plot the data

def plot_data(x, v):
    xpt = [q[0] for q in x]
    ypt = [q[1] for q in x]

    fig, ax = plt.subplots()
    ax.scatter(xpt, ypt, s=40, c=v, cmap="viridis")
    ax.set_aspect("equal")
    return fig
fig = plot_data(x, v)
../_images/b4429587b4fe2ffb9f1222fde8f8adffee3e2ca55cd83a2c949401425ce0897e.png

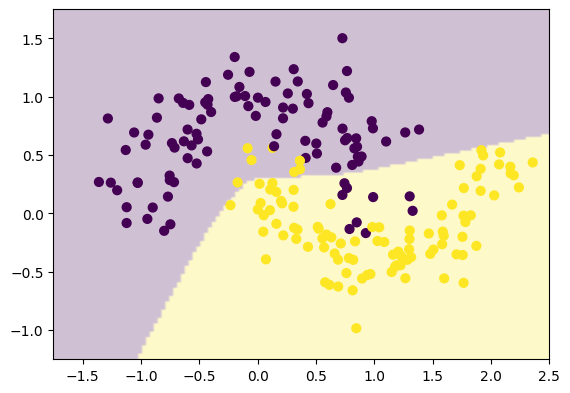

We want to partition this domain into 2 regions, such that when we come in with a new point, we know which group it belongs to.

First we setup and train our network

from keras.models import Sequential
from keras.layers import Dense, Dropout, Activation
from tensorflow.keras.optimizers import RMSprop
2024-07-26 12:48:26.859549: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2024-07-26 12:48:26.862652: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2024-07-26 12:48:26.869502: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:485] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
2024-07-26 12:48:26.882407: E external/local_xla/xla/stream_executor/cuda/cuda_dnn.cc:8454] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
2024-07-26 12:48:26.886510: E external/local_xla/xla/stream_executor/cuda/cuda_blas.cc:1452] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
2024-07-26 12:48:26.897549: I tensorflow/core/platform/cpu_feature_guard.cc:210] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
2024-07-26 12:48:27.909529: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT
model = Sequential()
model.add(Dense(50, input_dim=2, activation="relu"))
model.add(Dense(20, activation="relu"))
model.add(Dense(1, activation="sigmoid"))
/opt/hostedtoolcache/Python/3.11.9/x64/lib/python3.11/site-packages/keras/src/layers/core/dense.py:87: UserWarning: Do not pass an `input_shape`/`input_dim` argument to a layer. When using Sequential models, prefer using an `Input(shape)` object as the first layer in the model instead.
  super().__init__(activity_regularizer=activity_regularizer, **kwargs)
rms = RMSprop()
model.compile(loss='binary_crossentropy',
              optimizer=rms, metrics=['accuracy'])
from IPython.display import SVG
from keras.utils import plot_model

plot_model(model, show_shapes=True, dpi=100)
../_images/28ff680f48d7d9abb8c8d40bc79857f5367ee31300719324d32eb6ead791c3b5.png

We seem to need a lot of epochs here to get a good result

epochs = 100
results = model.fit(x, v, batch_size=50, epochs=epochs)
Epoch 1/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 1s 460ms/step - accuracy: 0.4600 - loss: 0.7525

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 2ms/step - accuracy: 0.4987 - loss: 0.7320
Epoch 2/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.5800 - loss: 0.6774

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.5493 - loss: 0.6771
Epoch 3/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.5200 - loss: 0.6651

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.6187 - loss: 0.6526
Epoch 4/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.7800 - loss: 0.6399

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8087 - loss: 0.6303
Epoch 5/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8800 - loss: 0.5901

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8453 - loss: 0.5998
Epoch 6/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - accuracy: 0.8400 - loss: 0.6007

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8360 - loss: 0.5881
Epoch 7/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8800 - loss: 0.5752

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8487 - loss: 0.5682
Epoch 8/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8400 - loss: 0.5560

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8487 - loss: 0.5463
Epoch 9/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8000 - loss: 0.5610

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8420 - loss: 0.5375
Epoch 10/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8600 - loss: 0.5192

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8420 - loss: 0.5185
Epoch 11/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.9000 - loss: 0.4824

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8667 - loss: 0.4950
Epoch 12/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8200 - loss: 0.4737

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8500 - loss: 0.4752
Epoch 13/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.7800 - loss: 0.5245

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8293 - loss: 0.4868
Epoch 14/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.4168

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8560 - loss: 0.4485
Epoch 15/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8200 - loss: 0.4642

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8320 - loss: 0.4585
Epoch 16/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.4112

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8553 - loss: 0.4257
Epoch 17/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8200 - loss: 0.4518

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8440 - loss: 0.4286
Epoch 18/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8800 - loss: 0.3823

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8633 - loss: 0.3977
Epoch 19/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9200 - loss: 0.3777

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8653 - loss: 0.4032
Epoch 20/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9200 - loss: 0.3063

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8767 - loss: 0.3645
Epoch 21/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.3347

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8767 - loss: 0.3630
Epoch 22/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8000 - loss: 0.4335

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8340 - loss: 0.3958
Epoch 23/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.7600 - loss: 0.5094

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8333 - loss: 0.4039
Epoch 24/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8200 - loss: 0.3925

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8347 - loss: 0.3844
Epoch 25/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.4175

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8420 - loss: 0.3843
Epoch 26/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8200 - loss: 0.3917

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8453 - loss: 0.3648
Epoch 27/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.3363

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8487 - loss: 0.3580
Epoch 28/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - accuracy: 0.9000 - loss: 0.3189

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8647 - loss: 0.3418
Epoch 29/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.3175

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8593 - loss: 0.3506
Epoch 30/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.3029

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8487 - loss: 0.3421
Epoch 31/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8000 - loss: 0.3914

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8207 - loss: 0.3723
Epoch 32/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.7200 - loss: 0.5077

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8127 - loss: 0.3909
Epoch 33/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.3749

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8507 - loss: 0.3492
Epoch 34/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.3301

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8427 - loss: 0.3455
Epoch 35/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8000 - loss: 0.3453

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8380 - loss: 0.3341
Epoch 36/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.3210

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8293 - loss: 0.3502
Epoch 37/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.3077

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8433 - loss: 0.3352
Epoch 38/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.2605

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8673 - loss: 0.2955
Epoch 39/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.3235

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8593 - loss: 0.3148
Epoch 40/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8200 - loss: 0.3651

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8393 - loss: 0.3363
Epoch 41/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - accuracy: 0.8000 - loss: 0.3973

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8333 - loss: 0.3446
Epoch 42/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.2352

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8633 - loss: 0.2927
Epoch 43/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - accuracy: 0.8600 - loss: 0.2557

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8527 - loss: 0.2962
Epoch 44/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.3008

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8533 - loss: 0.2989
Epoch 45/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.2889

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8460 - loss: 0.3083
Epoch 46/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8200 - loss: 0.3451

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8353 - loss: 0.3286
Epoch 47/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.2971

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8553 - loss: 0.3025
Epoch 48/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8000 - loss: 0.3630

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8347 - loss: 0.3245
Epoch 49/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8000 - loss: 0.3409

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8360 - loss: 0.3097
Epoch 50/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.9200 - loss: 0.2448

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8727 - loss: 0.2850
Epoch 51/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8800 - loss: 0.2508

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8620 - loss: 0.2796
Epoch 52/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8800 - loss: 0.2444

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8587 - loss: 0.2843
Epoch 53/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8200 - loss: 0.3665

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8473 - loss: 0.3136
Epoch 54/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.7600 - loss: 0.4189

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8227 - loss: 0.3366
Epoch 55/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.2520

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8500 - loss: 0.2926
Epoch 56/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8800 - loss: 0.2836

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8580 - loss: 0.2930
Epoch 57/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9200 - loss: 0.2344

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8733 - loss: 0.2759
Epoch 58/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.3372

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8500 - loss: 0.3188
Epoch 59/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.3159

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8553 - loss: 0.2930
Epoch 60/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.2810

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8567 - loss: 0.2917
Epoch 61/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9400 - loss: 0.2094

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8860 - loss: 0.2619
Epoch 62/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - accuracy: 0.8800 - loss: 0.3145

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8707 - loss: 0.2926
Epoch 63/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.2311

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8600 - loss: 0.2697
Epoch 64/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.2333

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8687 - loss: 0.2579
Epoch 65/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.2213

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8760 - loss: 0.2593
Epoch 66/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8800 - loss: 0.2761

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8793 - loss: 0.2719
Epoch 67/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9200 - loss: 0.2100

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8800 - loss: 0.2603
Epoch 68/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8800 - loss: 0.2309

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8607 - loss: 0.2739
Epoch 69/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.2663

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8667 - loss: 0.2717
Epoch 70/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.2667

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8573 - loss: 0.2850
Epoch 71/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.2002

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8713 - loss: 0.2675
Epoch 72/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.3365

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8647 - loss: 0.3002
Epoch 73/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8600 - loss: 0.3108

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8573 - loss: 0.2922
Epoch 74/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.2117

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 2ms/step - accuracy: 0.8647 - loss: 0.2652
Epoch 75/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8200 - loss: 0.3375

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8593 - loss: 0.2975
Epoch 76/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.3391

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8627 - loss: 0.2849
Epoch 77/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9400 - loss: 0.1911

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8947 - loss: 0.2418
Epoch 78/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8800 - loss: 0.2916

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8887 - loss: 0.2599
Epoch 79/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.3099

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8633 - loss: 0.2829
Epoch 80/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8200 - loss: 0.3148

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8727 - loss: 0.2591
Epoch 81/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9400 - loss: 0.1810

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8973 - loss: 0.2368
Epoch 82/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.7800 - loss: 0.3520

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8587 - loss: 0.2842
Epoch 83/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.9400 - loss: 0.2189

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8953 - loss: 0.2484
Epoch 84/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8800 - loss: 0.2742

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8727 - loss: 0.2742
Epoch 85/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8800 - loss: 0.2485

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8833 - loss: 0.2530
Epoch 86/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8800 - loss: 0.2455

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8913 - loss: 0.2421
Epoch 87/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9200 - loss: 0.1805

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8947 - loss: 0.2276
Epoch 88/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.2233

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8893 - loss: 0.2426
Epoch 89/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8800 - loss: 0.2664

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8913 - loss: 0.2480
Epoch 90/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8200 - loss: 0.3641

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8687 - loss: 0.2786
Epoch 91/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.9800 - loss: 0.1212

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.9180 - loss: 0.2038
Epoch 92/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.9000 - loss: 0.1965

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8873 - loss: 0.2297
Epoch 93/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9000 - loss: 0.2377

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8793 - loss: 0.2577
Epoch 94/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.9000 - loss: 0.2176

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8853 - loss: 0.2400
Epoch 95/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8800 - loss: 0.2574

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8960 - loss: 0.2452
Epoch 96/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8800 - loss: 0.2852

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8880 - loss: 0.2563
Epoch 97/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9200 - loss: 0.2441

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.9127 - loss: 0.2391
Epoch 98/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 13ms/step - accuracy: 0.8600 - loss: 0.2856

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8847 - loss: 0.2464
Epoch 99/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.9800 - loss: 0.1385

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.9340 - loss: 0.2068
Epoch 100/100
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 12ms/step - accuracy: 0.8400 - loss: 0.3213

4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - accuracy: 0.8767 - loss: 0.2609
score = model.evaluate(x, v, verbose=0)
print(f"score = {score[0]}")
print(f"accuracy = {score[1]}")
score = 0.23894809186458588
accuracy = 0.9100000262260437

Let’s look at a prediction. We need to feed in a single point as an array of shape (N, 2), where N is the number of points

res = model.predict(np.array([[-2, 2]]))
res
1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 31ms/step

1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 32ms/step
array([[1.767235e-07]], dtype=float32)

We see that we get a floating point number. We will need to convert this to 0 or 1 by rounding.

Let’s plot the partitioning

M = 128
N = 128

xmin = -1.75
xmax = 2.5
ymin = -1.25
ymax = 1.75

xpt = np.linspace(xmin, xmax, M)
ypt = np.linspace(ymin, ymax, N)

To make the prediction go faster, we want to feed in a vector of these points, of the form:

[[xpt[0], ypt[0]],
 [xpt[1], ypt[1]],
 ...
]

We can see that this packs them into the vector

pairs = np.array(np.meshgrid(xpt, ypt)).T.reshape(-1, 2)
pairs[0]
array([-1.75, -1.25])

Now we do the prediction. We will get a vector out, which we reshape to match the original domain.

res = model.predict(pairs, verbose=0)
res.shape = (M, N)

Finally, round to 0 or 1

domain = np.where(res > 0.5, 1, 0)

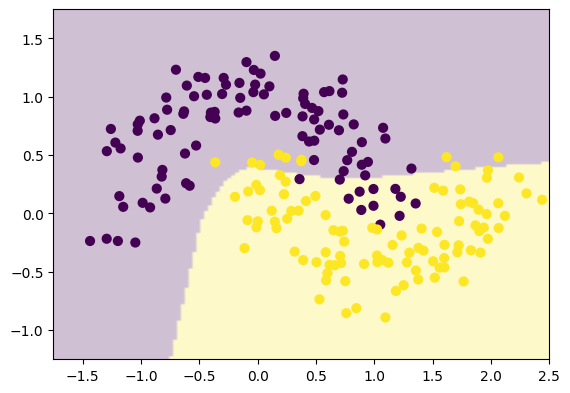

and we can plot the data

fig, ax = plt.subplots()
ax.imshow(domain.T, origin="lower",
          extent=[xmin, xmax, ymin, ymax], alpha=0.25)
xpt = [q[0] for q in x]
ypt = [q[1] for q in x]

ax.scatter(xpt, ypt, s=40, c=v, cmap="viridis")
<matplotlib.collections.PathCollection at 0x7f1d0ce525d0>

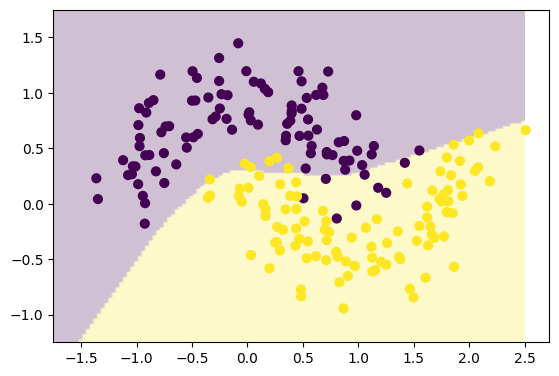

../_images/ae7ac6b3c84e3c880c58663f032acc10f81cde67c1eebebc3d3d7c71ef5ece7b.png
